I’ve been designing and having speaker boxes built for 20+ years. These active wedges are the same we used on all of our live shows where wedges are requested. Dozens of 80 hair bands and grand old opry acts have worked with the wedges.

Being a singer, my vocal cut through well but also, the sound was very pleasing. Most of the time a singer doesn’t actually like the sound of his voice. They keep thinking you can fix their brain by adjusting a knob. The FCS15PW will fix a lot of that.

I way overpowered the amp section for a couple reasons. One, more power never hurt me in the past. I’d rather be looking at it, than for it. Two, I’m using the same amp in my 2x12” & 2-2” horn line arrays also my 1X12” x 2” line arrays. Just seemed easier to have one amp for everything.

On the horn itself. Because of all the power available, I requested a 3” – 1.5” exit B&C style horn that will handle 220W continuous power. Combine that horn with the 300 available watts – you can really tear someone’s face off. Most of what I’ll address here is due to deaf performers. My goal was to make a wedge that when the talent says “Check” his next line is, “can you turn that damned thing down?”

Versatile: I had stand mounts put on both sides of the speaker box. The FCS15PW will also work great as a stand-alone speaker on a stand. There’s rigging track built in that can be changed to either side of the box for arraying. Check to bottom of the page for arraying options in an install.

FCS-15PW being used on "loud stages."

15" Dual Concentric Speaker w/horn for FCS15PW $450

FCS Pro.2 Amp Module Programed for the FCS15PW  $379 Delivered

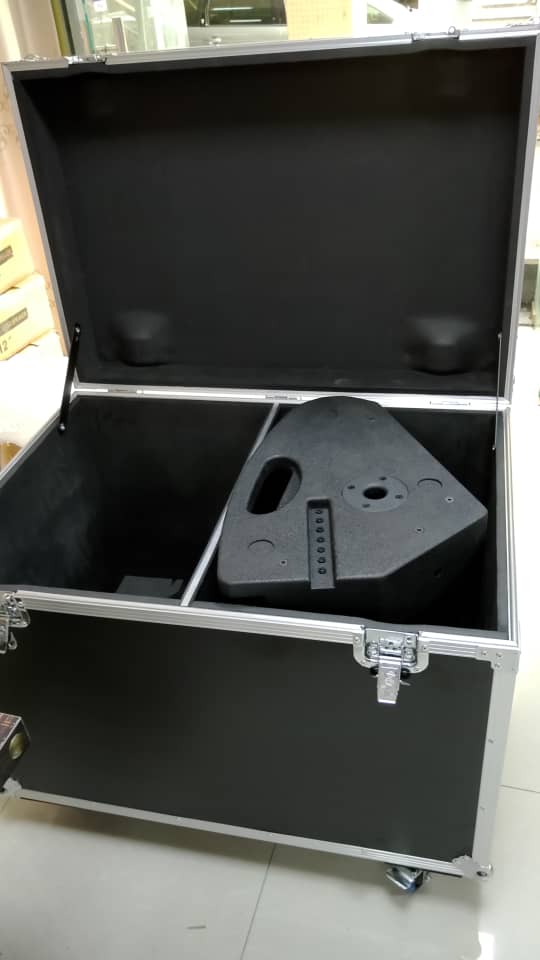

Used Clam Shell Road Cases for the FCS15PW $200 Used (my logo will be rolled over with black ink)

Product Overview

Versatile and powerful, the 1100-Watt FCS 15PW offers reliable monitoring and reproduction capabilities to musicians and audio engineers. Its 15" / 1.75" coaxial design and 90° x 90° dispersion pattern produce consistent coverage with no dead spots. Deployed as a stage monitor, the FCS-15PW's 55° monitoring angle ensures high intelligibility regardless of the performer's proximity. Designed for stage monitoring or FOH (Front of House) support, the speaker features an integrated pole mount, allowing for use as a fill, delay, or main PA speaker. Couple the FCS-15PW with a subwoofer to create a versatile, powerful, and compact PA system. Onboard DSP EQ features include shelving, parametric, low-cut, and feedback notch filters, allowing for maximum gain usage even in the most challenging settings.

Frequency City’s 15PW Features:

• A multi-functional monitoring system that is useable as a floor wedge or as a mains PA.
• Acoustically optimized 55° monitor floor angle
• Built in DSP features a flat EQ, so the Sound Engineer has a perfect starting point to tune the wedge to his/her preference.
• GUITARCAB setting makes it easy for guitarists to dial in their signature tone.
•


Freq City Sound 15-PW Specifications:

• Frequency response (-3 dB): 64 Hz - 20 kHz
• Frequency range (-10 dB): 53 Hz - 20 kHz
• Monitor Angle: 55°
• Maximum SPL: 129 dB
• Coverage (H x V): 90 degree x 90 degree
• Amplifier Rating: 1100 W
• LF Channel Rating: 800 W
• HF Channel Rating: 300 W
• Crossover frequency: 1.6 kHz
• Transducer: 15” / 1.75” 2-way coaxial
• Connectors
• 1x XLR/TRS combo input
• 1x XLR THRU input
• Enclosure: ¾” Baltic Burch
• Grille: Steel with black powder coat
• Color: Black
• Dimensions: (H x W x D) 17.4” x 23.3” x 21.7”
• Net weight: 64 lbs.
• Power consumption: 110V / 10 Amps Max Draw

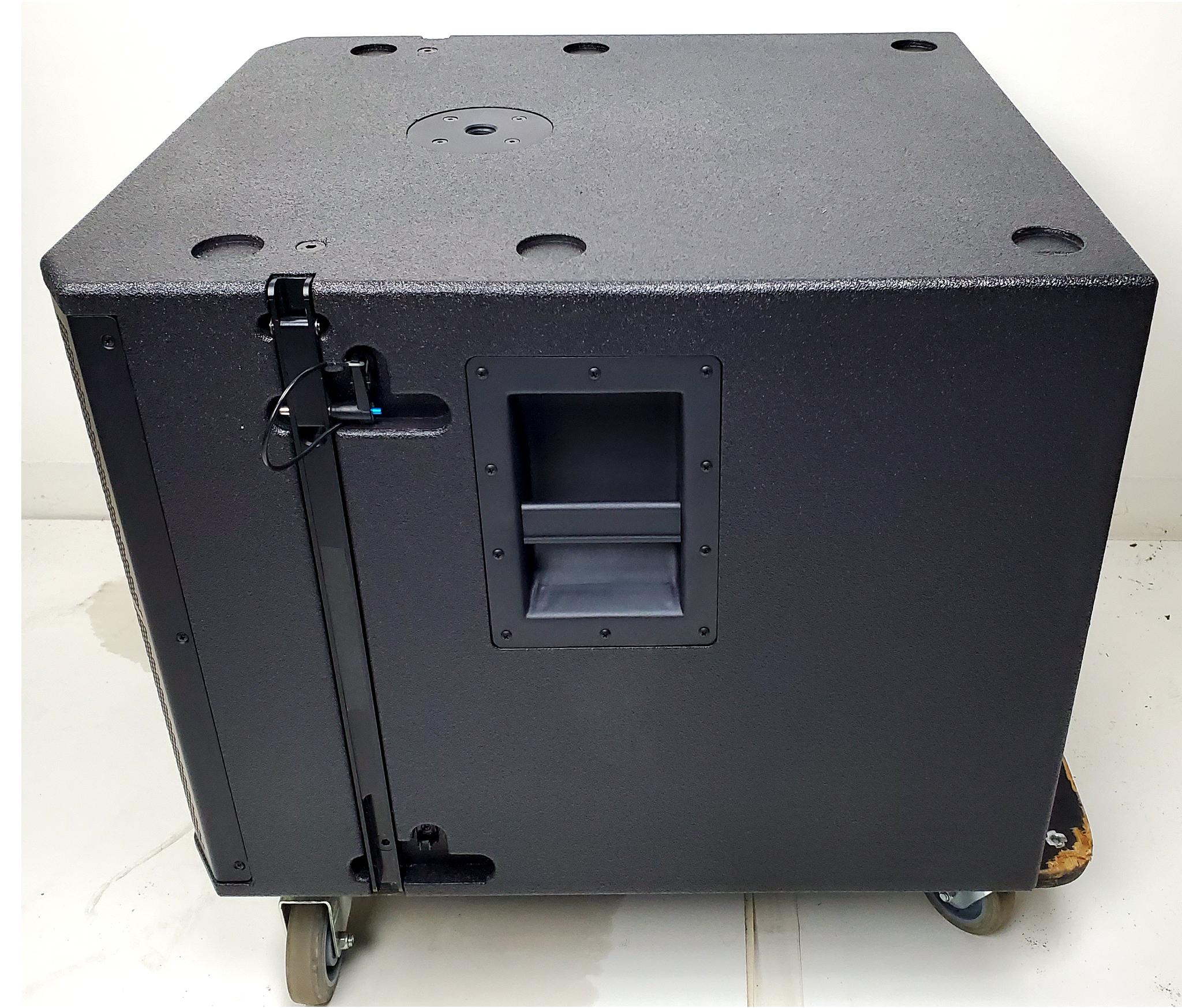

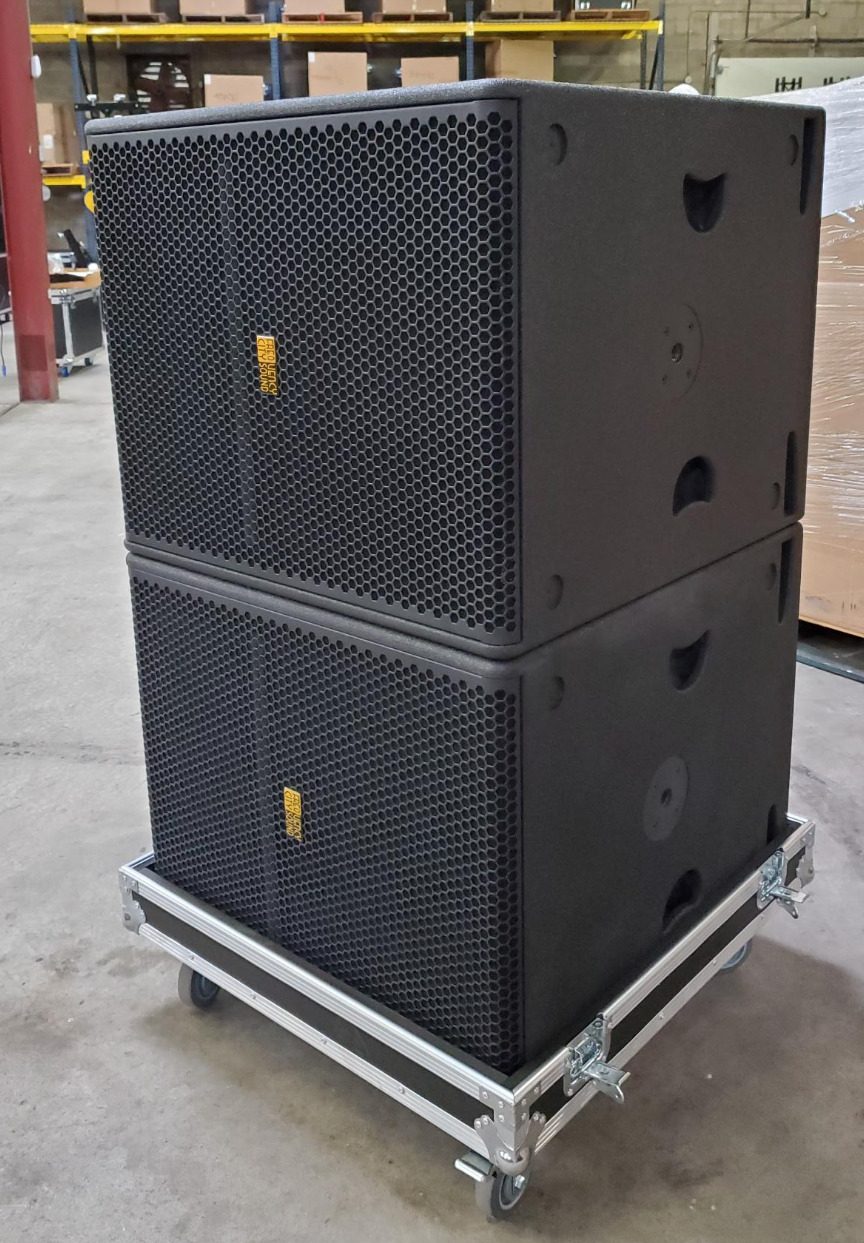

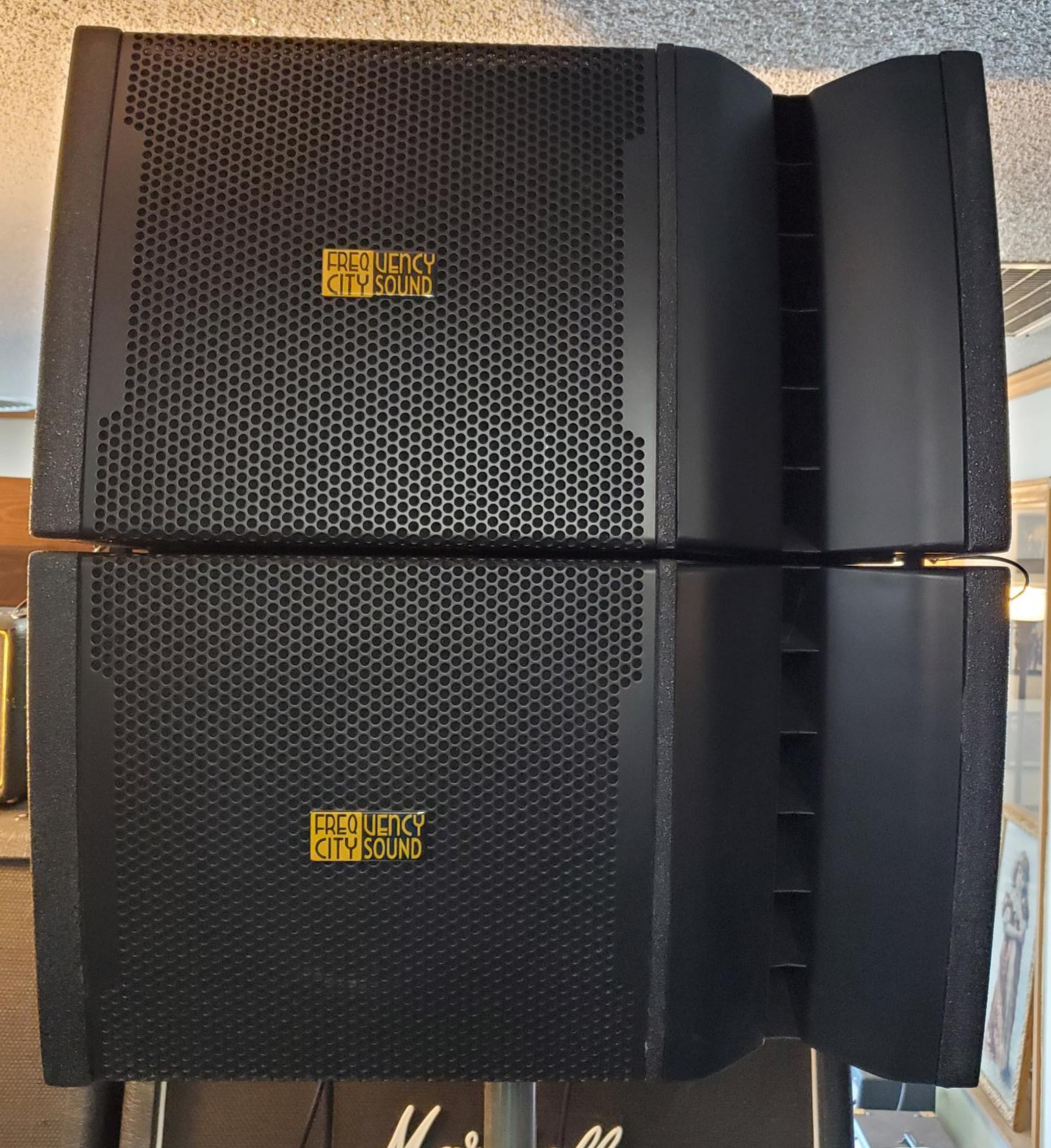

             21" Active Sub                                    12" Active Line Array                         2x6" Active Center Fill
