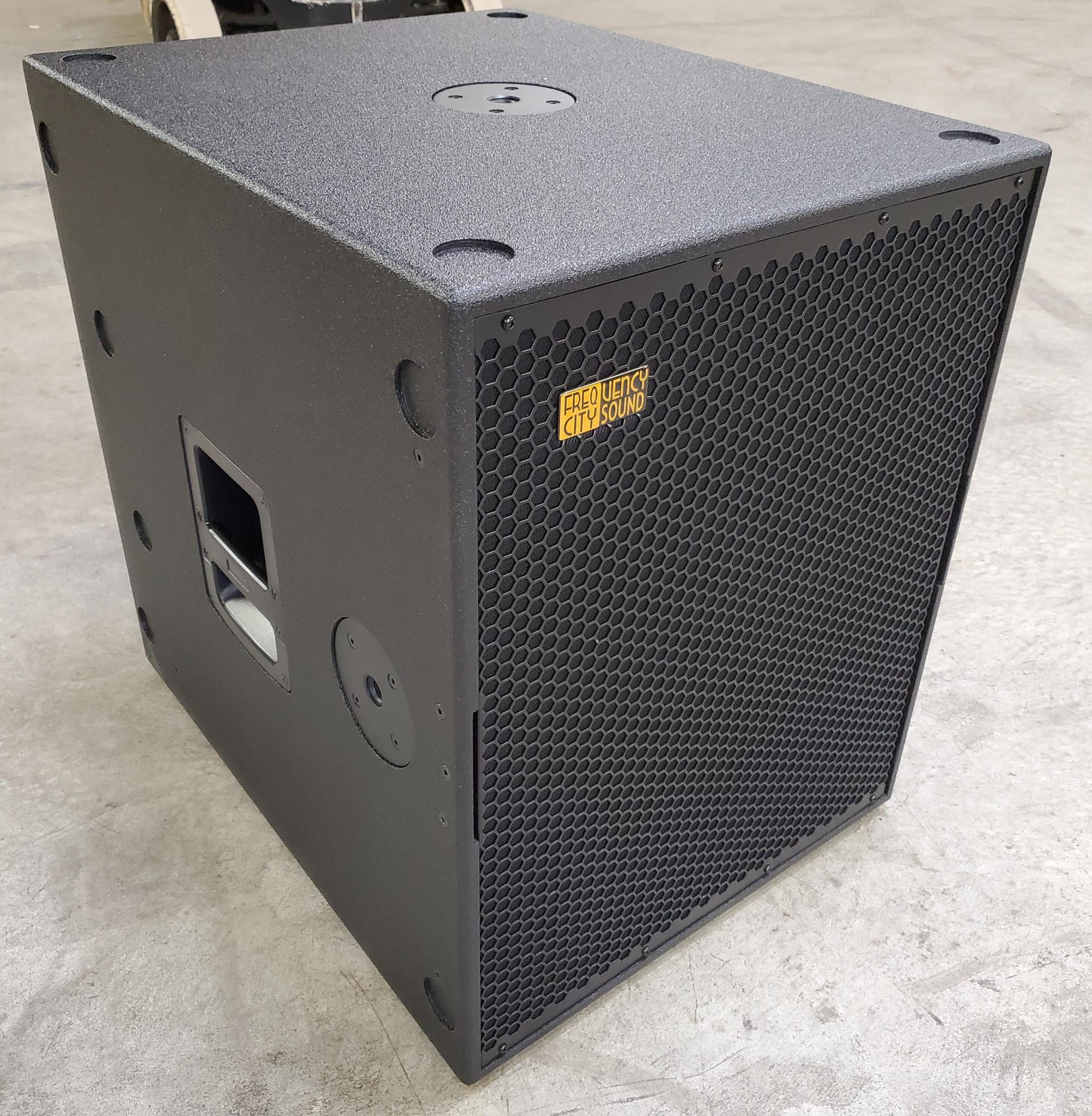

FCS18P-V3 Active 18" Subwoofer $1295
FCS’s advanced 18" woofer and high-output amplifier deliver seismic low-end frequencies with minimal distortion for powerful, defined bass. The FCS18P-V3's innovative acoustics ensure your low-end cuts through the mix with the utmost clarity and precision. Stacking ability on the top or sides. M20 pole mounts on top and side.
FCS sub cabinets are made of high-quality multi-ply hardwood coated with a rugged black Polyurethane finish. Subs are stack-able and have ergonomic handles. They are designed for easy set-up and tear-down. The M20 threaded pole mount on the top and side of the cabinet supports speakers of various sizes. The powder-coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect transducers from dust.
FCS18LAP Powered Subwoofer
The FCS18LAP delivers massive low‑end power and precision, designed to complement the FCS12LAP array or stand alone as a touring or installation sub. With a robust 18‑inch driver, a 1500‑watt RMS Class D amplifier, and advanced built‑in DSP and protection circuitry, this subwoofer combines pure muscle with refined control.
Factory‑tuned for a flat, accurate response, the FCS18LAP provides an ideal foundation for any sound system—tight, powerful bass that extends cleanly down to 38 Hz without overshoot or distortion. Perfect for venues, live sound rigs, houses of worship, and pro‑audio installations requiring clarity and reliability at high output levels.
Technical Specifications
- Frequency Response: 38 Hz – 200 Hz
- Speaker Size: 18‑inch high‑performance driver
- Power Amplifier: 1500 W RMS, Class D with integrated DSP
- Total Harmonic Distortion: ≤ 0.05 %
- Slew Rate: ≥ 40 V/µs
- Damping Factor: ≥ 500
- Input Impedance: 10 K / 20 K Ohms (unbalanced / balanced)
- Signal‑to‑Noise Ratio: ≥ 95 dB
- Sensitivity: 104 dB (1 W @ 1 m)
- Maximum SPL: 135 dB

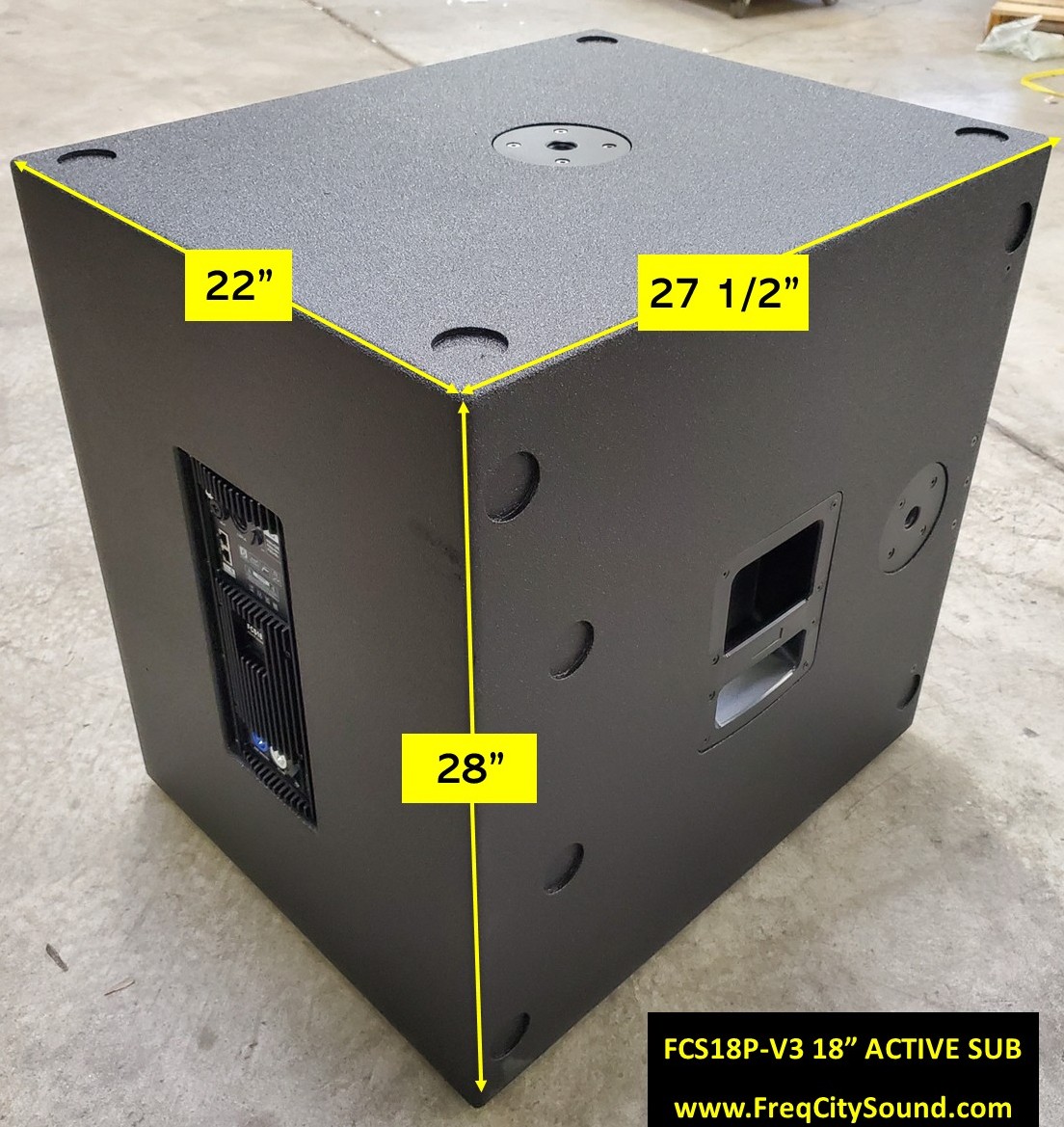

- Dimensions: 27.5" D × 22" W × 28" H
- Weight: 104 lbs
- Warranty: 1 Year Freq City Sound Warranty

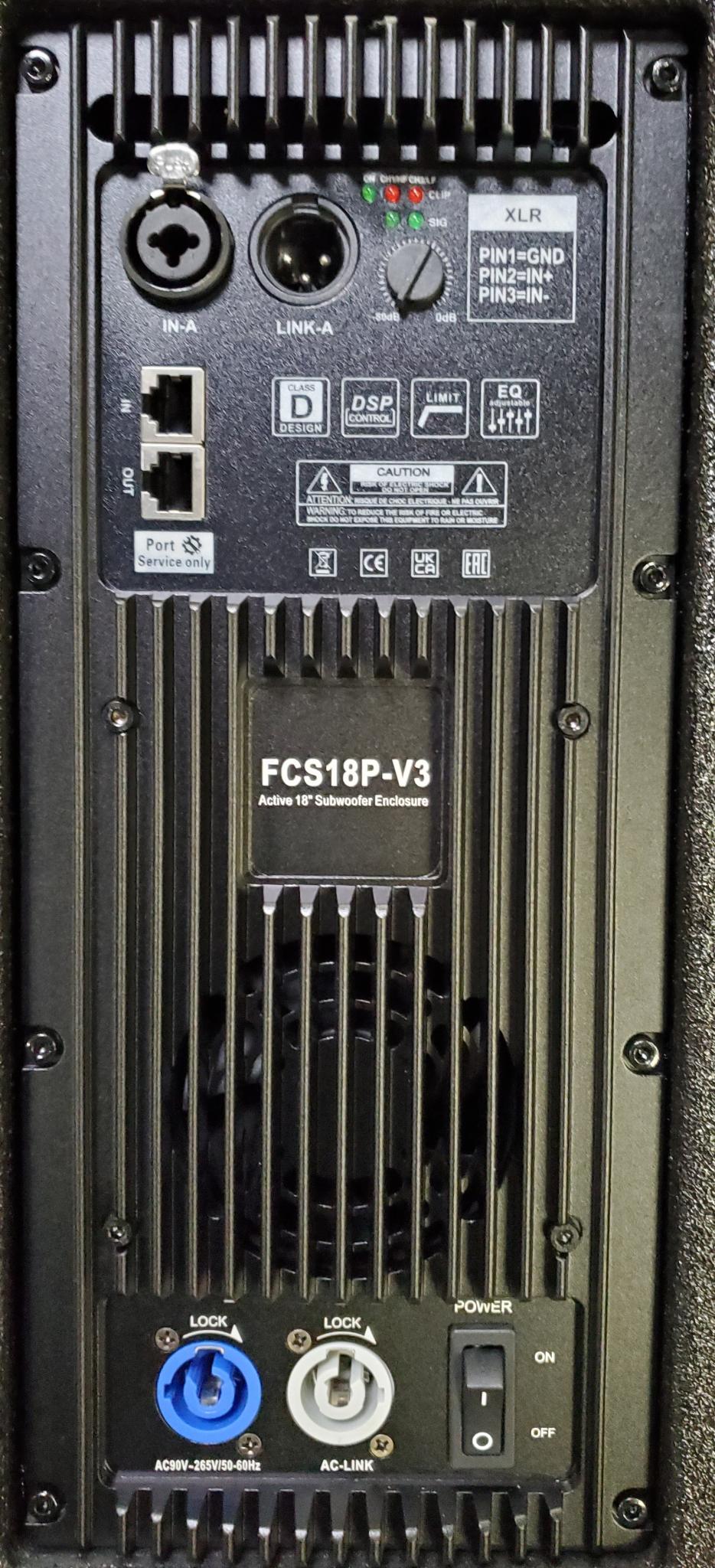

Amplifier & Protection System
- DSP Processing with Class D Power Section + PFC A‑Guard Protection
- Comprehensive Safety Features:
- DC protection
- Undervoltage and overvoltage protection
- Overheat management
- Soft startup and shutdown
- Output overload protection
- Input/Output limiters
Cooling System
- Smart Fan Control: Variable‑speed, temperature‑activated fans
- Airflow Design: Front‑to‑back venting for efficient thermal management
- Maintenance: Mandatory cooling ensures consistent performance under stress

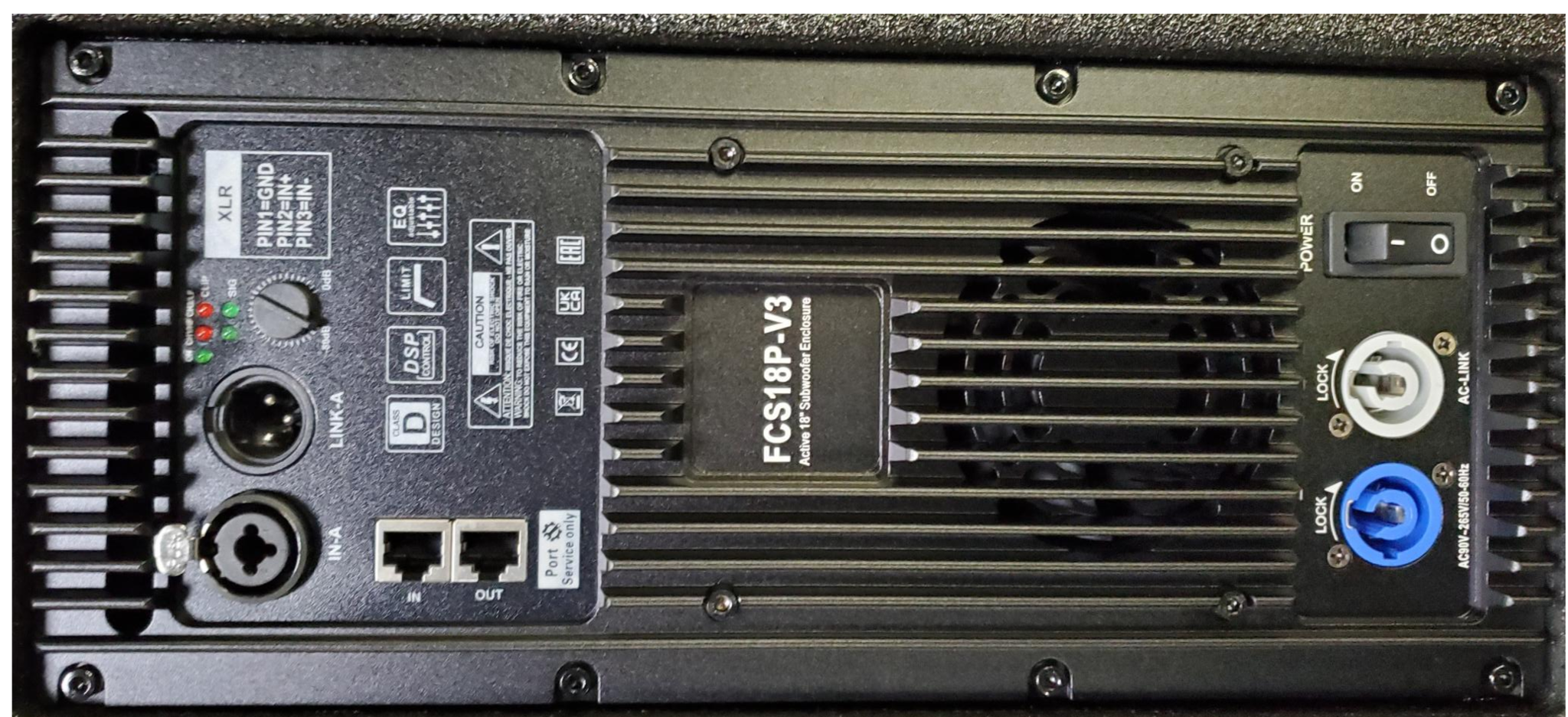

FCS18P-V3 AMP MODULE $399

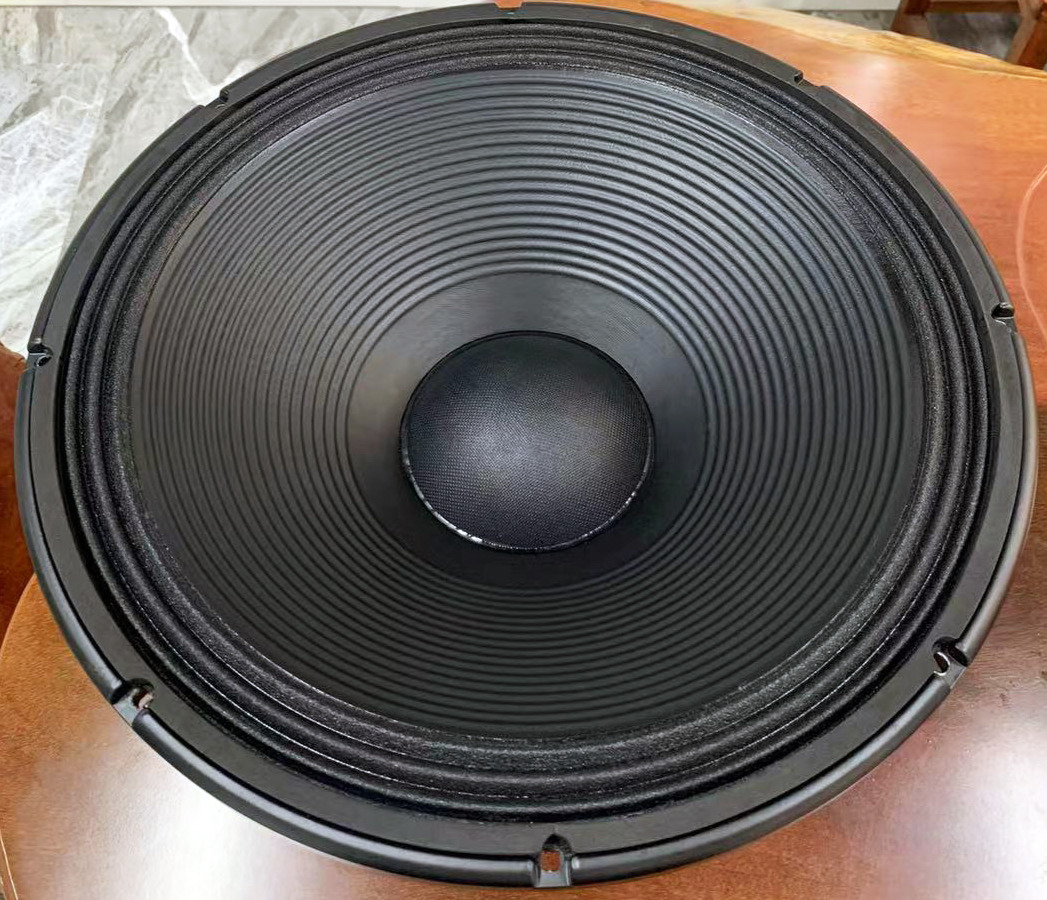

FCS18P-V3 REPLACEMENT SPEAKER $329
18" Re-cone Kit for FCS18P-V3 $149 Delivered
